A wedge anchoring clamp, also known as a wedge tension clamp or drop wire clamp, is a mechanical device used primarily in overhead power lines and telecommunication networks to anchor or terminate conductors, messenger wires, or optical fiber cables. Its simple yet effective design ensures strong mechanical holding with minimal installation effort anchor clamp, making it a key component in aerial network construction.
1. Purpose and Function
The primary function of a wedge anchoring clamp is to secure and anchor cables to poles, walls, or other fixed structures. It ensures tension is maintained in the cable system while also protecting the cable from excessive strain or mechanical damage. The clamp is typically used at the end of a cable run, where it provides a fixed point of termination.
2. Design and Construction

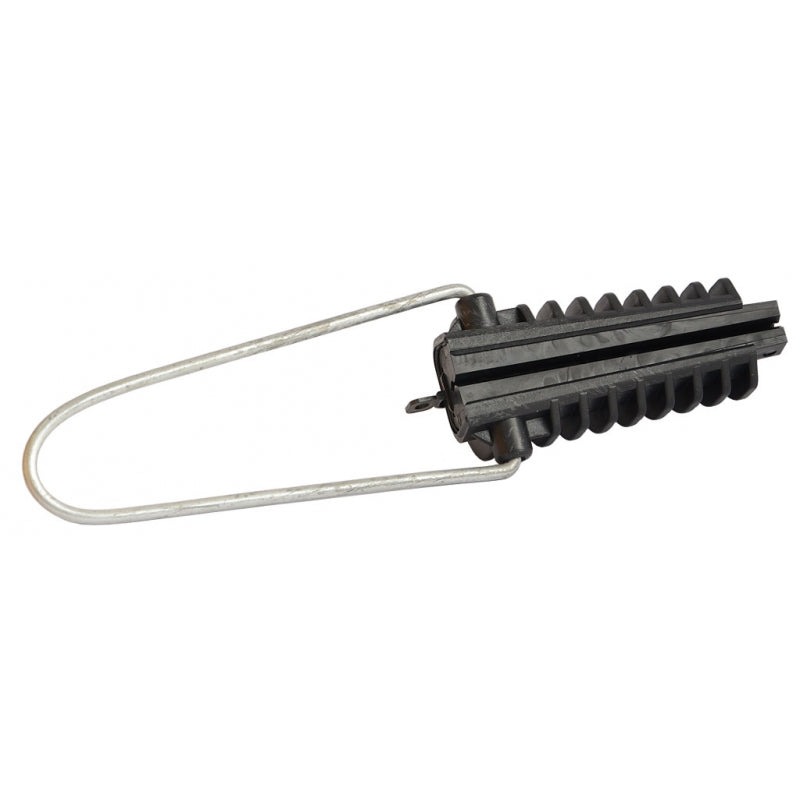

Wedge anchoring clamps consist of three main parts:
-
Body (Shell): Often made of high-strength, weather-resistant plastic or aluminum alloy. It houses the internal components and provides structural integrity.
-
Wedge(s): These are inserted into the body and compress the cable when pulled tight. Wedges are usually self-adjusting, gripping tighter as tension increases.
-
Loop or Bail: A stainless steel or galvanized steel loop that connects the clamp to a hook or bracket on the pole or support structure.
The simplicity of the design ensures easy, tool-free installation, often by sliding the cable between the wedges and then pulling it tight so the wedges grip the cable firmly.
3. Key Features
-
High holding strength: Designed to withstand tension and maintain secure grip under variable loads.
-
Corrosion resistance: Essential for outdoor installations exposed to weather.
-
Insulation protection: Prevents damage to insulated cables or fiber-optic sheaths.
-
Tool-free installation: Fast and efficient setup saves labor time.
4. Applications
Wedge anchoring clamps are widely used in:
-
Overhead power lines for low and medium voltage systems.
-
Fiber optic cable installations in FTTH (Fiber to the Home) and broadband networks.
-
Telecommunications and CATV networks.
-
Street lighting systems and other suspended cable runs.
5. Advantages
-
Reliability and safety: Ensures cables are securely held even in high-wind or ice-loading conditions.
-
Versatility: Compatible with various cable types and diameters.
-
Cost-effective: Durable construction reduces maintenance and replacement needs.
-
Environmentally robust: Withstands harsh environmental conditions including UV, moisture, and extreme temperatures.
Conclusion
The wedge anchoring clamp is a small but vital component in modern overhead cable infrastructure. Its efficient design, ease of installation, and high mechanical performance make it an indispensable tool for ensuring the reliability and longevity of aerial cable systems. Whether in power distribution or high-speed data networks, wedge clamps play a key role in keeping connections strong and secure.
